connectors Catalog

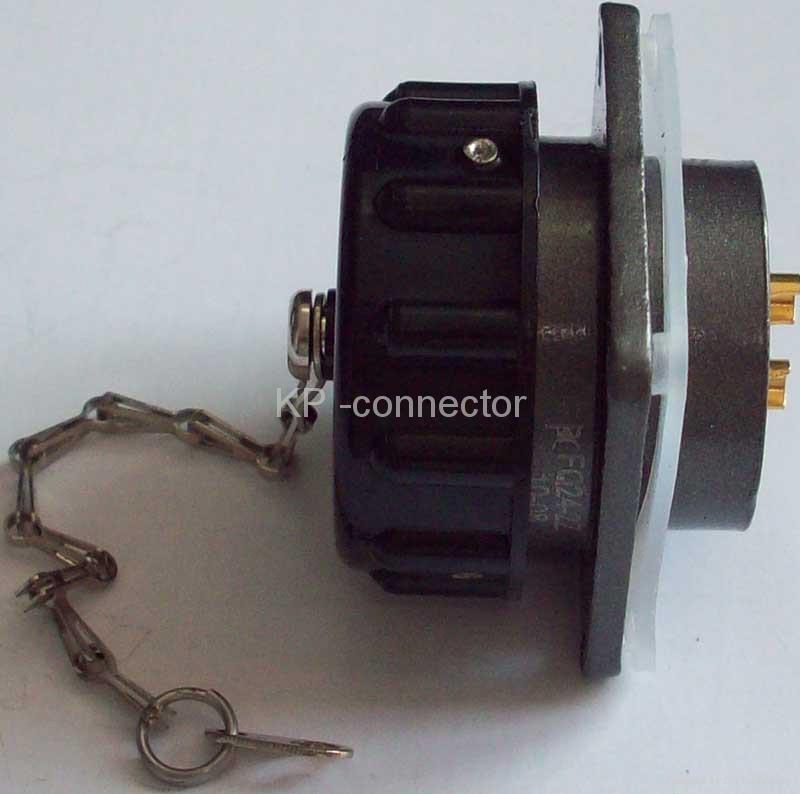

power water proof connectors with caps

  • power  water proof connectors with caps
  • power  water proof connectors with caps
  • power  water proof connectors with caps
Model No.︰FQ24-2TC+2ZC
Brand Name︰kaipu
Country of Origin︰China
Unit Price︰CNY ¥ 55 / pc
Minimum Order︰5 pc
Share on:

 Total 33 Related Items
Prev1011121314Next

Product Description
FQ24 series circular connectors can be useed in the water-proof place.We use the reliable cage clamp connection instead of the traditional wire spring.These connectors have the features of lower contact resistance,anti-libration,shock proof,water proof and strong seal etc.They are widely used for the electrical connection between electrical equipment..
Product Ordering
             FQ   24  — 6     10
                         1      2       3     4   5     6
     1. Name of series:    FQ
2.Shell size :          24
3.Number of contacts:1,3,4,,6,10,19,26
4.T: Plug(TR:angled plug),Z: flange mounting receptacle,ZP:cable receptacle,
   Z2:Receptacle with O ring,ZY: circular recptacle
5. Type of contacts: K:socket, J:pin
6. Wire gauge:      6,10,12,14
Technical characteristics
The connector is allowed to submerged in 1m deep water for 30min.(Ip67)

Temperature
Relative humidity
Atmosphere
Vibration
Shock
-55°C~+85°C
(90~96)% at40°C
4.4KPa
10~200Hz,150m/s²
490m/s²
Current
Voltage
Contact resistance
Endurance
2A~5A
250V
10mΩ
500cycles
10A-25A
400V
5mΩ
500cycles

Environment
Voltage proof
Insulation resistance
Normal
1200V
1000MΩ
High temperature
1000V
500MΩ
Moisture
800V
100MΩ
Low pressure
400V
-
Specifications︰Product Ordering
FQ 24 -6 T K -10
1 2 3 4 5 6
1. Name of series: FQ
2.Shell size : 24
3.Number of contacts: 1,2,3,4,,6,10,19,26
4.T: Plug(TR:angled plug),Z: flange mounting receptacle,ZP:cable receptacle,
Z2:Receptacle with O ring,ZY: circular recptacle
5. Type of contacts: K:socket, J:pin
6. Wire gauge: 6,10,12,14
Technical characteristics
The connector is allowed to submerged in 1m deep water for 30min.(Ip67)
Advantages︰FQ24 series circular connectors can be useed in the water-proof place.We use the reliable cage clamp connection instead of the traditional wire spring.These connectors have the features of lower contact resistance,anti-libration,shock proof,water proof and strong seal etc.They are widely used for the electrical connection between electrical equipment.
Technical characteristics
The connector is allowed to submerged in 1m deep water for 30min.(Ip67)
Export Markets︰world
Pricing︰US$8.8
Payment Details︰T/T,WEST UNION
Min Order︰5
Ship Date︰a week
Standard Met︰IP67
Product Image
