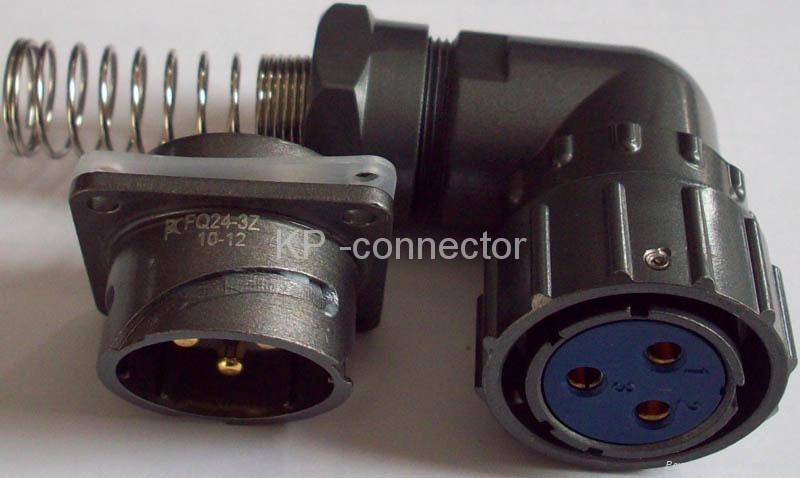

FQ24-3 angle circular connectors,water proof connectors

Model No.︰FQ24-3TR+Z
Brand Name︰KP
Country of Origin︰China
Unit Price︰US $ 10.9 / pc
Minimum Order︰10 pc
Share on:

 Total 33 Related Items
Prev12345Next

Product Description


FQ24 series circular connectors can be useed in the water-proof place.We use the reliable cage clamp connection instead of the traditional wire spring.These connectors have the features of lower contact resistance,anti-libration,shock proof,water proof and strong seal etc.They are widely used for the electrical connection between electrical equipment.

Product Ordering

             FQ   24  — 3     8

              1      2       3    4    5    6

     1. Name of series:      FQ

2.Shell size :             24

3.Number of contacts: 2,3,4,610,19,26

4.T: Plug(TR:angled plug),Z: flange mounting receptacle,ZP:cable receptacle,

   Z2:Receptacle with O ring,ZY: circular recptacle

5. Type of contacts:  K:socketJ:pin

6. Wire gauge:      6,7,8,9,10,12,14,16



Technical characteristics

The connector is allowed to submerged in 1m deep water for 30min.(Ip67)



Temperature

Relative humidity

Atmosphere

Vibration

Shock

-55°C~+85°C

(90~96)% at40°C

4.4KPa

10~200Hz,150m/s²

490m/s²

Current

Voltage

Contact resistance

Endurance

2A~5A

250V

10mΩ

500cycles

10A-25A

400V

5mΩ

500cycles








Environment

Voltage proof

Insulation resistance

Normal

1200V

1000MΩ

High temperature

1000V

500MΩ

Moisture

800V

100MΩ

Low pressure

400V

-



Product Dimensions  (Plug,Flange mounting receptacle)

Type

D1

D2

L1

L4

Cable sleeve

D3  Ø

L2

L3

S

L

FQ24

Ø33

Ø22.6

21

5.4

Ø 6,7,8

6

46

72

53

49

Ø9, 10,12,14,16

10,12

46

77





  Receptacle





 Type

a

b

D1

D2

D3 Ø

FQ24

26+0.2

33

Ø24

Ø22.6

27.2



Cable receptacle

Type

D3 Ø

a

b

L1

Cable sleeve

L2

FQ24

27.2

26

33

21

6,10,12

46



Contacts number

Type

Number

Contact Ø &Current



FQ24

4,6

2.5, 25A/400V

10

1.5,10A/400V

19,26

1.0 ,3A/250V



Specifications︰FQ24 series circular connectors can be useed in the water-proof place.We use the reliable cage clamp connection instead of the traditional wire spring.These connectors have the features of lower contact resistance,anti-libration,shock proof,water proof and strong seal etc.They are widely used for the electrical connection between electrical equipment.
Product Ordering
FQ 24 — 3 T K —8
1 2 3 4 5 6
1. Name of series: FQ
2.Shell size : 24
3.Number of contacts:2,3,4,610,19,26
4.T: Plug(TR:angled plug),Z: flange mounting receptacle,ZP:cable receptacle,
Z2:Receptacle with O ring,ZY: circular recptacle
5. Type of contacts: K:socket,J:pin
6. Wire gauge: 6,7,8,9,10,12,14,16
Advantages︰FQ24 series circular connectors can be useed in the water-proof place.We use the reliable cage clamp connection instead of the traditional wire spring.These connectors have the features of lower contact resistance,anti-libration,shock proof,water proof and strong seal etc.They are widely used for the electrical connection between electrical equipment.
Export Markets︰world
Pricing︰us$10.9
Payment Details︰T/T
Min Order︰10
Ship Date︰2 WEEKS
Standard Met︰IP67
